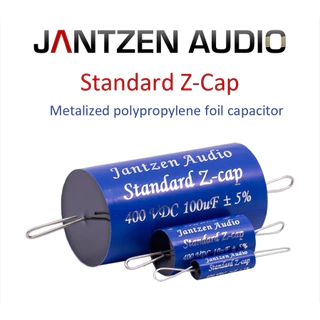

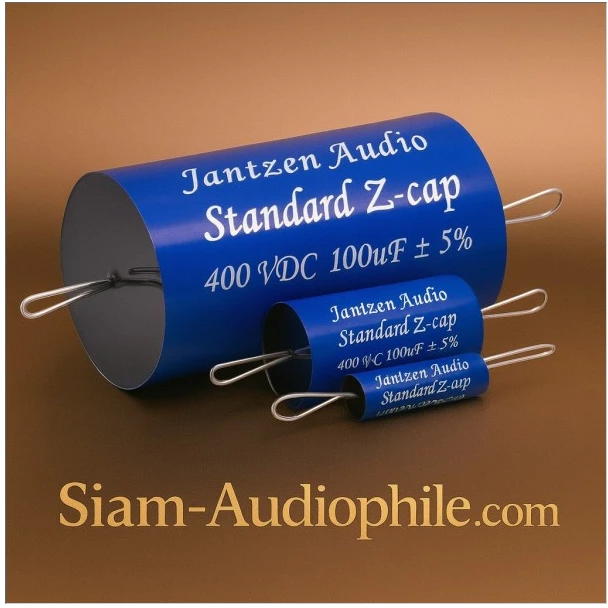

Jantzen Audio STANDARD Z-CAP Metalized polypropylene foil capacitor.

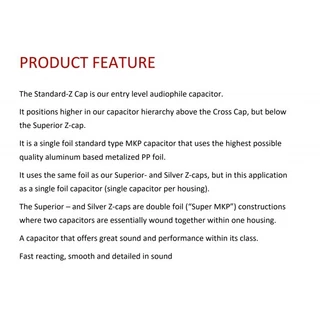

PRODUCT FEATURE The Standard-Z Cap is our entry level audiophile capacitor. It positions higher in our capacitor hierarchy above the Cross Cap, but below the Superior Z-cap. It is a single foil standard type MKP capacitor that uses the highest possible quality aluminum based metalized PP foil. It uses the same foil as our Superior- and Silver Z-caps, but in this application as a single foil capacitor (single capacitor per housing). The Superior – and Silver Z-caps are double foil (“Super MKP”) constructions where two capacitors are essentially wound together within one housing. A capacitor that offers great sound and performance within its class. Fast reacting, smooth and detailed in sound TECHNICAL DATA Capacitor foil: Polypropylene foil metalized with Aluminium (Al) Type: Non-polarized MKP (single foil lane) Dielectric: Polypropylene film Construction: Round tubular type axial leads Winding: Bifilar extended metalized foil Rated Voltage: 400 VDC / 250 VAC Test Voltage: 150% rated voltage Electrodes: Aluminum metallized vacuum deposited Contacts: Non-inductive zinc thermally sprayed extended film Coating: Blue plastic tape wrapped and sealed in black resin Leads: Tin plated oxygen free copper (99,99% purity) Capacity Range: 400VDC from 1.0 μF to 100μF Capacity tolerance: ±5% (on nominal value) Dielectric constant: Non-polar dielectric Dissipation factor: Extremely low Dielectric absorption factor: ＜0.5% @20℃ Dielectric thickness: PB=5µm Equivalent series resistance: Extremely low Self-inductance: < 15 nH Insulation resistance: ＞100.000 MΩ@20℃ Temperature coefficient: -200℃x10-6/℃ Temperature Range: -55℃to +85℃ Metal layer thickness: PB=0.3µm Metal layer conductivity: PB =1.2 Ω/cm2 รายละเอียดค่าและขนาดของสินค้า Jantzen Audio STANDARD Z-CAP Metalized polypropylene foil capacitor 400VDC ±5% (on nominal value) 1.00uF/400VDC ขนาด D x L = 10 x 32 mm. 1.20uF/400VDC ขนาด D x L = 10 x 32 mm. 1.50uF/400VDC ขนาด D x L = 12 x 32 mm. 1.80uF/400VDC ขนาด D x L = 12 x 32 mm. 2.20uF/400VDC ขนาด D x L = 14 x 32 mm. 2.70uF/400VDC ขนาด D x L = 15 x 32 mm. 3.30uF/400VDC ขนาด D x L = 17 x 32 mm. 3.60uF/400VDC ขนาด D x L = 17 x 32 mm. 3.90uF/400VDC ขนาด D x L = 17 x 32 mm. 4.70uF/400VDC ขนาด D x L = 20 x 32 mm. 5.60uF/400VDC ขนาด D x L = 21 x 32 mm. 6.80uF/400VDC ขนาด D x L = 23 x 32 mm 8.20uF/400VDC ขนาด D x L = 20 x 47 mm 10.0uF/400VDC ขนาด D x L = 22 x 47 mm 12.0uF/400VDC ขนาด D x L = 23 x 47 mm 15.0uF/400VDC ขนาด D x L = 24 x 57 mm ****สำคัญมากโปรดอ่านค่ะ**** ****ราคาขายสินค้าต่อชิ้นนะค่ะ**** ##ตรวจสอบ รุ่น ค่า และขนาดก่อน กดสั่งซื้อนะค่ะ ##สินค้าไม่รับเปลี่ยนคืนทุกกรณี ยกเวันทางร้านส่งผิดค่ะ
