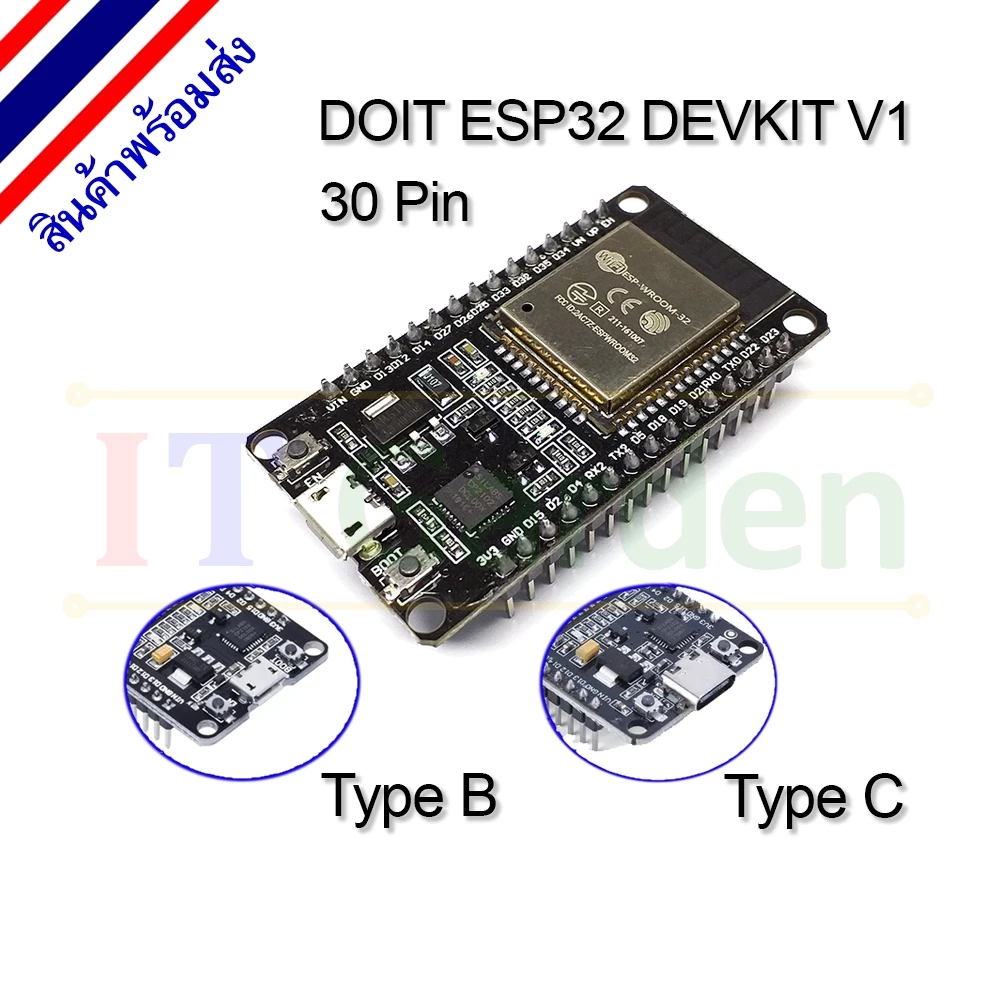

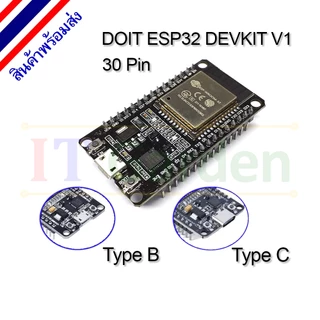

ESP32 ESP-32 CP2102 DOIT DEVKIT V1 Layout Development Board 30 Pin

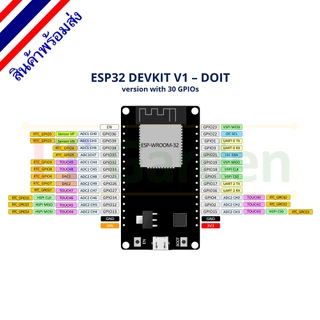

DOIT ESP32 DEVKIT V1 Development Board This is the ESP32 DEVKIT DOIT board. This board with 30 GPIOs comes with two GND pins. The pins are labeled at the top of the board, so it is easy to identify the pins. It comes with on-board RESET (EN) and BOOT buttons. Additionally, it comes with USB-to-UART interface, so that you can easily program it using Arduino IDE or other development environments, and comes with voltage regulator circuit. The board can be powered using the micro-USB connector, and it doesn’t come with battery connector. *Features and Specifications Processor: Tensilica Xtensa Dual-Core 32-bit LX6 Clock Speed : 240 MHz Flash Memory : 4 MB ROM: 448 KB SRAM: 520 KB Operating Voltage: 3.3 V Input Voltage : 6-12V (Vin Pin) Wireless connectivity: - WiFi: 150.0 Mbps data rate with HT40, IEEE 802.11 b/g/n/e/i - Bluetooth: BLE (Bluetooth Low Energy) and Bluetooth Classic Low Power: ensures that you can still use ADC conversions, for example, during deep sleep. Peripheral Input/Output: - Peripheral interface with DMA that includes capacitive touch - ADCs (Analog-to-Digital Converter) - DACs (Digital-to-Analog Converter) - I²C (Inter-Integrated Circuit) - UART (Universal Asynchronous Receiver/Transmitter) - SPI (Serial Peripheral Interface) - I²S (Integrated Interchip Sound) - RMII (Reduced Media-Independent Interface) - PWM (Pulse-Width Modulation). Security: hardware accelerators for AES and SSL/TLS Arduino IDE compatible: you can program the ESP32 with the Arduino IDE (Windows, Mac OS X and Linux installation instructions) Compatible with MicroPython: you can program the ESP32 with MicroPython firmware (Get started with MicroPython on ESP32)
