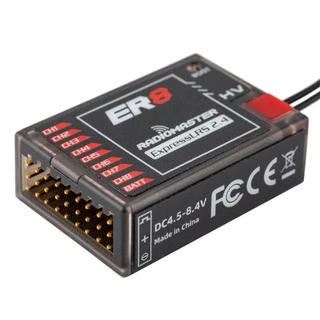

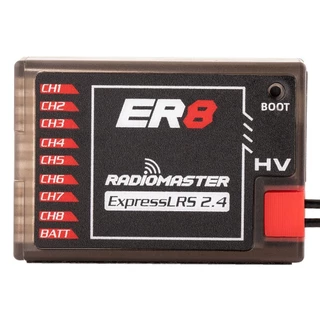

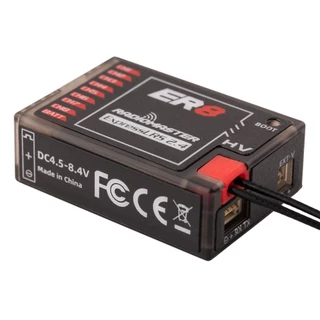

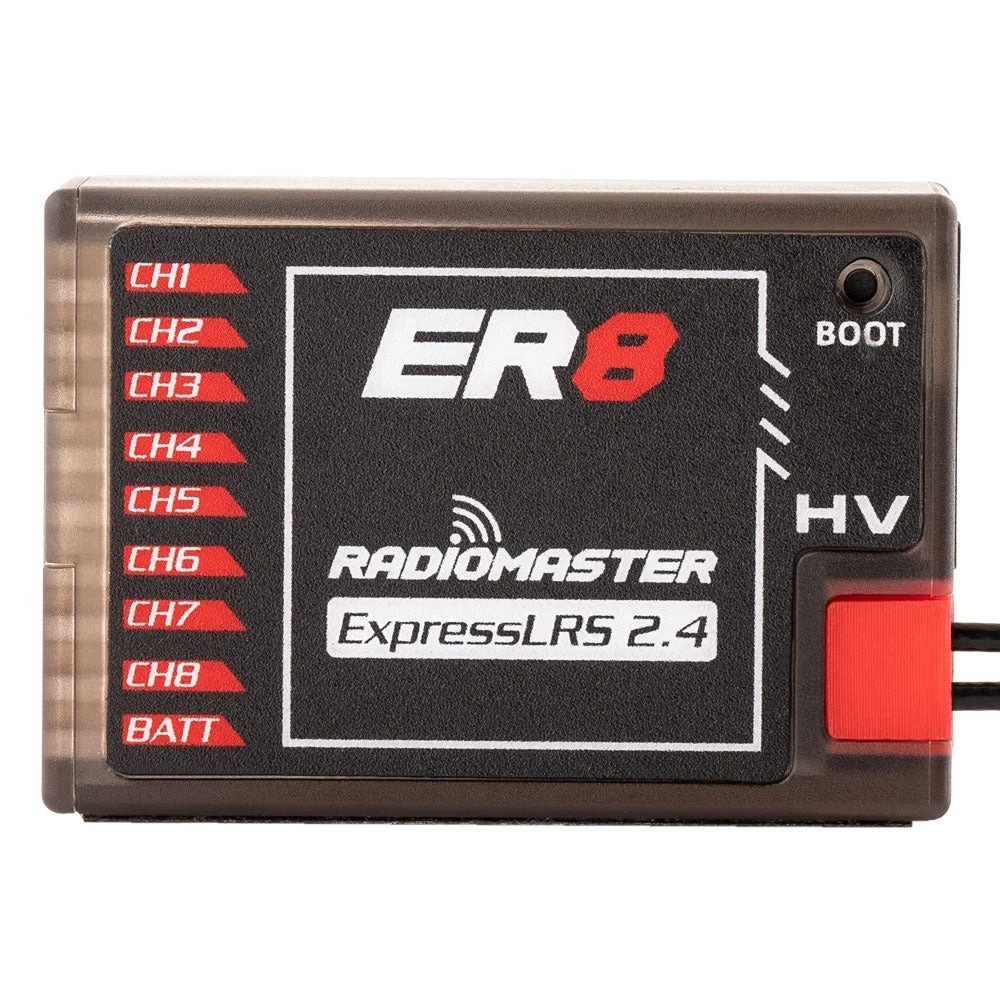

RadioMaster ER8 2.4GHz ELRS PWM Receiver

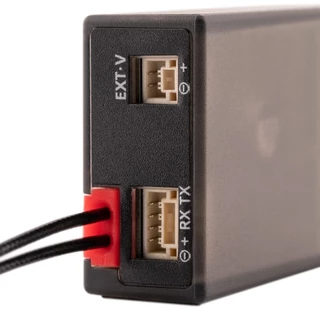

Features Based on the Revolutionary ExpressLRS System High performance, high reliability, flexible configuration, fast response speed and ultra-long range Support 8 PWM Channels Optimized ground up PCB design Automatically voltage telemetry of external battery voltage or built-in receiver voltage Supports Wi-Fi updates and WEBUI configuration High quality 2.54 mm connector Standard 20 cm High Sensitivity Antenna Reserve 4pin CRSF input port Shell adopts one-piece molding process with high structural strength For fixed-wing aircraft and more Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS Specification Item: ER8 2.4GHz ELRS PWM Receiver Power supply: DC 4.5 - 8.4V Antenna type: 20cm high sensitivity antenna Wireless protocol: ExpressLRS 3.3.0 pre-installed Output channel: 8CH PWM Serial Output: CRSF / Sbus Telemetry power: maximum 100mw (LUA Adjustable) Battery voltage detection range: DC 4.0 - 35V Bus interface: CRSF Weight: 16.5 grams Size: 43*30*15mm Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER8 2.4GHz Diversity+8xPWM RX Package Includes 1 * ER8 2.4GHz ELRS PWM Receiver 1 * Voltage telemetry wire (Type-B) 1 * CRSF wire 1 * ELRS- RX- SBUS wire 1 * User Card
