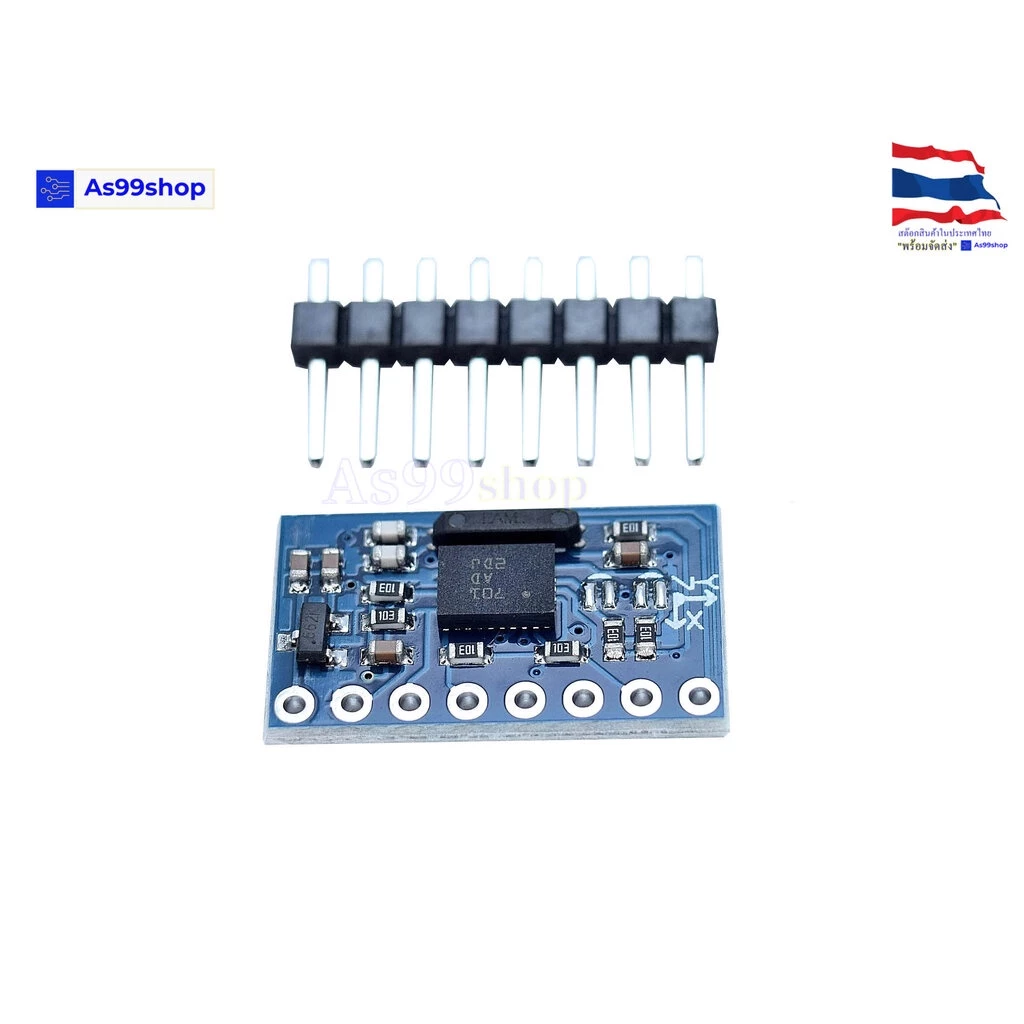

GY-BNO055 9dof 9-axis sensor attitude AHRS acceleration gyro magnetic field module

GY-BNO055 9dof nine-axis sensor attitude AHRS acceleration gyro magnetic field module(ร้านไม่ได้บัดกรีช่อง i2c ไปให้) Module model: GY-BNO055 Using the chip: BNO-055 Power supply: 3-5v (internal low dropout voltage regulation) Communication method: standard IIC/serial communication protocol Communication method: module size 12mm*20mm 【product description】 BNO055 combines a variety of sensors, including: 3-axis 12-bit accelerometer, 3-axis geomagnetic sensor and 3-axis 16-bit gyroscope, and built-in Atmel 32-bit MCU to handle software operations between various sensors. Supports Windows 8.1 Sensor-hub products. It can provide single data of three types of sensors (acceleration/geomagnetic/gyro) separately, and can also provide combined data, and provide more application support for products such as smart phones and wearable devices through built-in MCU calculation. Bosch Sensortec BNO055 Intelligent 9-Axis Absolute Orientation Sensor is a System in Package (SiP), integrating a triaxial 14-bit accelerometer, a triaxial 16-bit gyroscope with a range of 2000 degrees per second, a triaxial geomagnetic sensor and a 32 -bit ARM Cortex M0+ microcontroller running Bosch Sensortec sensor fusion software, in a single package. The corresponding chip-sets are integrated into one single 28-pin LGA 3.8mm x 5.2mm x 1.1mm housing. For optimum system integration the BNO055 is equipped The I2C interface can be programmed to run with the HID-I2C protocol turning the BNO055 into a plug-and-play sensor hub solution for devices running the Windows 8.0 or 8.1 operating system. https://learn.adafruit.com/adafruit-bno055-absolute-orientation-sensor/arduino-code
