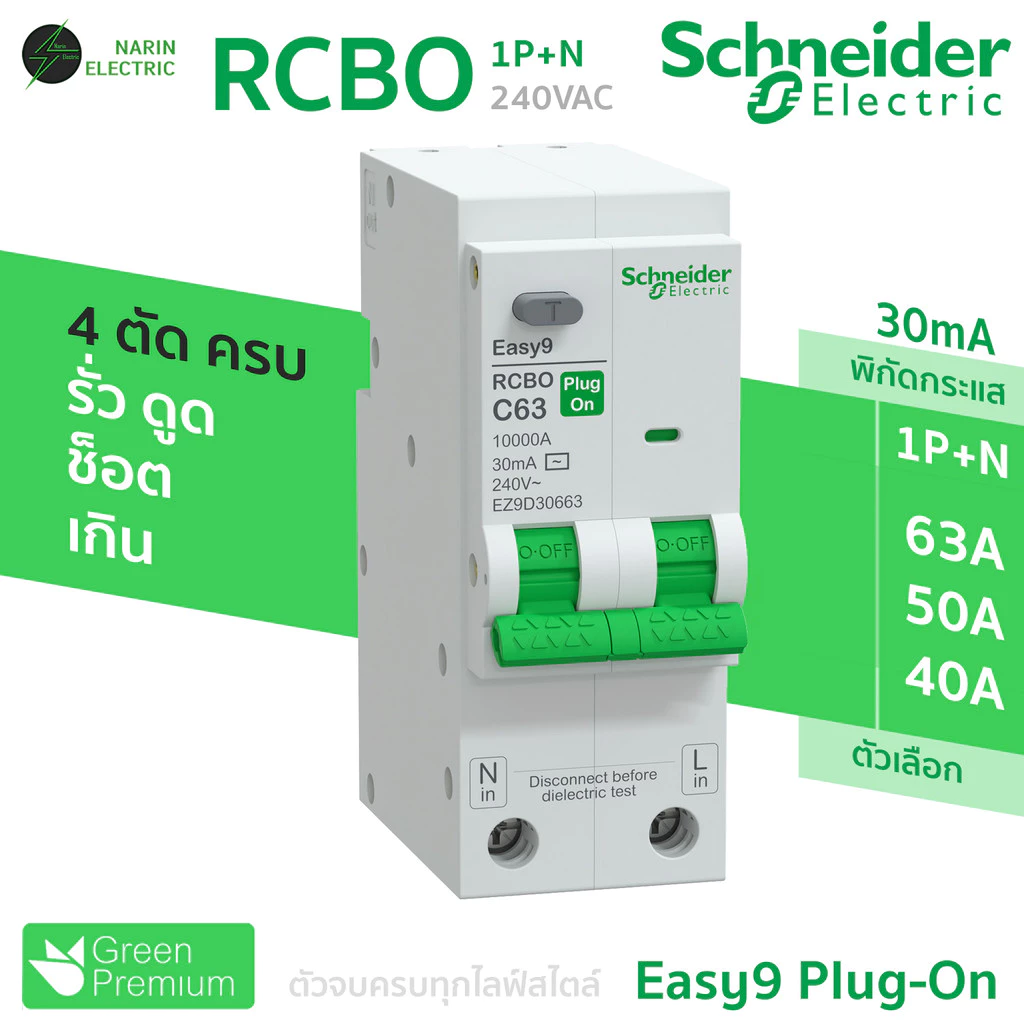

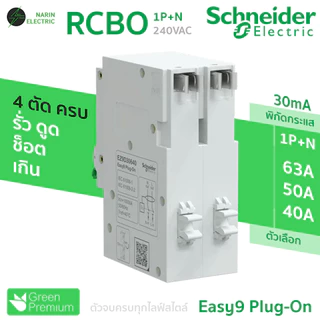

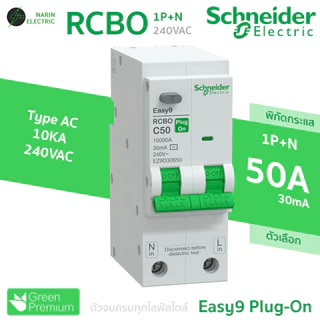

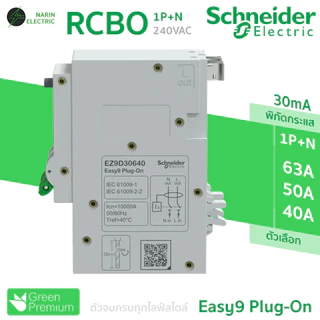

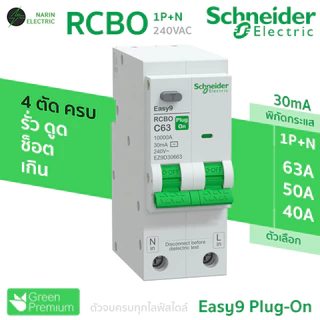

เมนเบรกเกอร์ RCBO 40A,50A,63A 2P รุ่น Easy9 Plug-On ดันล็อก Schneider

เมนเบรกเกอร์ RCBO 40A,50A,63A 2P รุ่น Easy9 Plug-On ดันล็อก Schneider เมนเซอร์กิตเบรกเกอร์ กันดูด กันรั่ว กันช็อต กันไฟเกิน ครบจบในตัวเดียว เมน RCBO 63A 1P+N Easy9 Plug-On EZ9D30663 Schneider เมน RCBO 50A 1P+N Easy9 Plug-On EZ9D30650 Schneider เมน RCBO 40A 1P+N Easy9 Plug-On EZ9D30640 Schneider Main Range Easy9 Plug-On product name Easy9 Plug-On RCBO Product or component type Residual current breaker with overcurrent protection (RCBO) Device short name Easy9 Plug-On RCBO Poles 1P + Ns Neutral position Left Number of protected poles 1 [In] rated current 40 A 50A 63A Option Earthing system TN Network type AC Trip unit technology Thermal-magnetic Curve code C Earth-leakage sensitivity 30 mA Earth-leakage protection time delay Instantaneous Earth-leakage protection class Type AC Breaking capacity 10000 A Icn at 240 V AC 50/60 Hz conforming to IEC 61009-2-2 Suitability for isolation Yes Complementary Device application Protection Device location in system Main incomer Network frequency 50/60 Hz [Ue] rated operational voltage 240 V AC 50/60 Hz Magnetic tripping limit 5...10 x In Residual current tripping technology Voltage dependent [Ics] rated service breaking capacity 7500 A at 240 V AC 50/60 Hz conforming to IEC 61009-2-2 [Ui] rated insulation voltage 400 V [Uimp] rated impulse withstand voltage 4 kV Contact position indicator Yes Control type Toggle Local signalling ON/OFF indication Mounting mode Plug-on 9 mm pitches 4 Height 95 mm Width 37.4 mm Depth 82 mm Net weight 0.250 kg Colour Light grey Mechanical durability 10000 cycles Electrical durability 4000 cycles Connections - terminals Screw clamp terminals (bottom) 1…35 mm² rigid Screw clamp terminals (bottom) 1…25 mm² flexible Plug-in connector (top) Wire stripping length 12 mm for bottom connection connection Tightening torque 2 N.m bottom Earth-leakage protection Integrated Environment Standards IEC 61009-1 IEC 61009-2-2 TIS 909-2548 Product certifications CB TISI IP degree of protection IP20 Tropicalisation 2 Relative humidity 95 % at 55 °C Ambient air temperature for operation 0…50 °C Ambient air temperature for storage -5…50 °C
