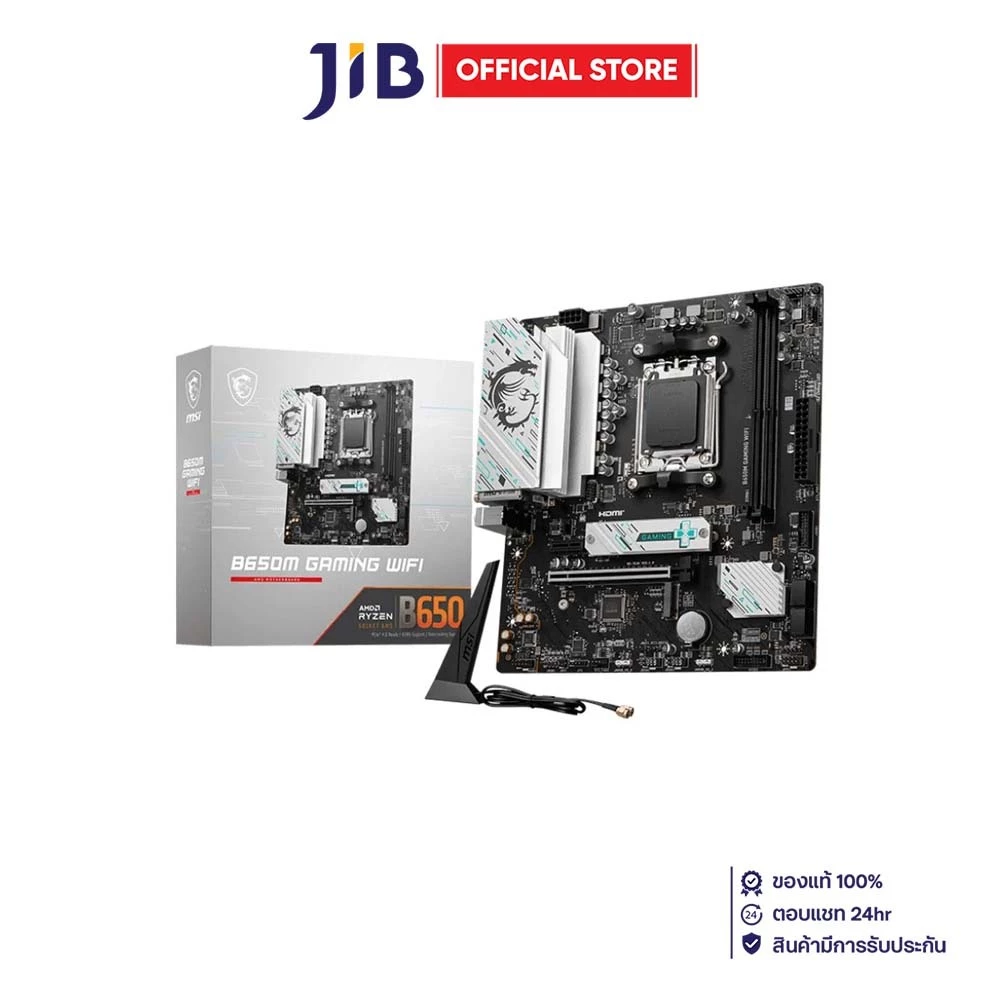

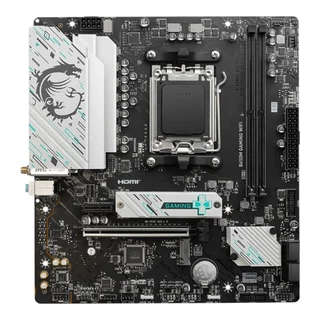

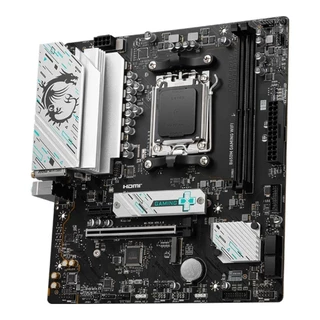

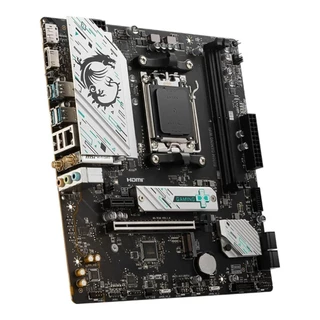

MAINBOARD (เมนบอร์ด) MSI B650M GAMING WIFI - AMD SOCKET AM5 DDR5 MICRO-ATX

รายละเอียดสินค้าโดยย่อ • Socket AM5 for AMD Ryzen 7000, 8000 Series Processors • AMD B650 • DDR5, 2 x DIMM • 1 x DP • 1 x HDMI • 2 x M.2 slots • 4 x SATA 6Gb/s ports • 2 x USB 3.2 Gen 1 Type-A connectors (front) • 1 x USB 3.2 Gen 1 Type-C (rear) • 3 x USB 3.2 Gen 1 Type-A (rear) • 2.5Gbps LAN • Wi-Fi 6E • Bluetooth 5.3 SPECIFICATION Socket: AM5 (7000 Series - Raphael) , AM5 (8000 / 8000 G Series - Phoenix) , AM5 (9000 Series - Granite Ridge) Chipset: AMD B650 Memory Type : DDR5 Memory Slot : 2 Max. Memory Capacity : 128 GB Memory Speed : 4800 , 5000 (OC) , 5200 (OC) , 5400 (OC) , 5600 (OC) , 5800 (OC) , 6000 (OC) , 6200 (OC) , 6400 (OC) , 6600 (OC) , 6800 (OC) , 7000 (OC) , 7200 (OC) , 7400 (OC) , 7600 (OC) , 7800 (OC) Graphics: Requires a CPU with Integrated Graphics. — • 1 x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz* • 1 x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* — *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. Audio: Realtek ALC897 Codec 7.1-Channel High Definition Audio SATA 3 : 4 Port RAID : • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices M.2: 2 x M.2 slots (Key M) — • M2_1 slot (From CPU) - Supports up to PCIe 4.0 x4 - Supports 2280 storage devices — • M2_2 slot (From CPU) - Supports up to PCIe 4. - Supports 2280 storage devices Port Expansion Slots: 1 x PCIe 3.0 x1 Slot , 1 x PCIe 4.0 x16 Slot LAN : Realtek 8125BG 2.5Gbps LAN LAN Speed : 100/1000/2500 Mbps Wireless : • AMD Wi-Fi 6E - The Wireless module is pre-installed in the M.2 (Key-E) slot - Supports MU-MIMO TX/RX - Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands - Supports 802.11 a/ b/ g/ n/ ac/ ax - Supports Bluetooth 5.3** — * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. Back Panel I/O: USB 2.0 : 2 Port USB 3.2 : • 1 x USB 3.2 Gen 1 5Gbps Type-C • 3 x USB 3.2 Gen 1 5Gbps Type-A Port D-Sub (VGA) : - Port DVI : - Port HDMI : 1 Port DisplayPort : 1 Port Audio : 3 Port PS/2 : 1 (Keyboard/Mouse combo) Port Additional : • 1 x Flash BIOS button • 2 x Wi-Fi antenna connectors LAN : 1 Port Form Factor : Micro-ATX Power Connector : 24 + 8 Pin Dimension : 24.3 x 22.6 cm การรับประกัน : 3 Years OPTIMIZED PCB SOLUTION The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission. • 6 PCB layers • 2oz Thickened Copper LIGHTNING GEN 4 PCI-E WITH STEEL ARMOR MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation. FAST AND FUTURE-READY STORAGE MSI B650M GAMING WIFI series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies. • 2 x Gen4 M2 64 Gbps • 4 x SATA3 6 Gbps LATEST DDR5 MEMORY WITH SMT SLOT A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, B650M GAMING WIFI is ready to deliver the world class memory performance. HIGH-BANDWIDTH AND LOW-LATENCY NETWORK MSI's premium network solution provides incredible data transfer speed for demanding users. • Wi-Fi 6E • Bluetooth 5.3 • 2.5G LAN
