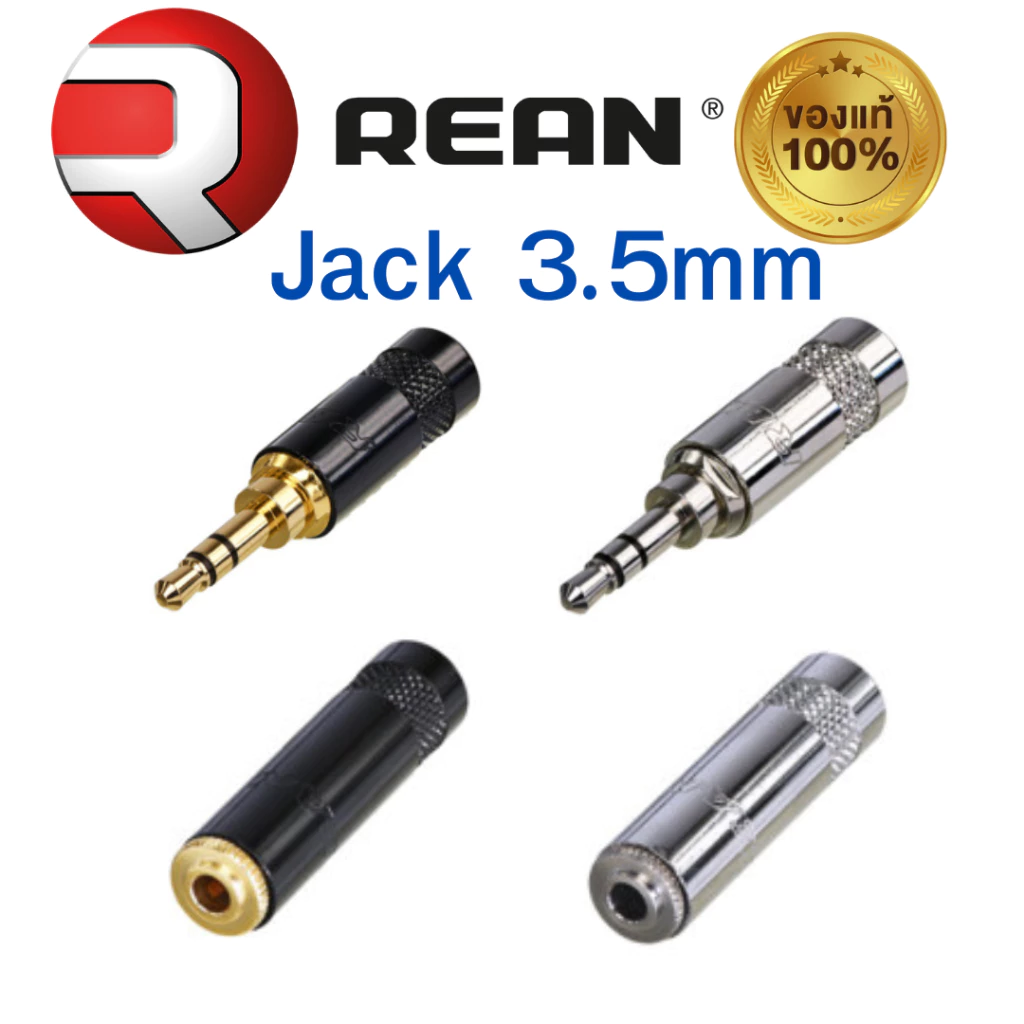

แจ็ค 3.5 mm Aux REAN NYS231BG NYS231LBG

NYS231BG ใช้กับสาย Mogami 2893 NYS231LBG ใช้กับสาย Mogami 2893 Mogami 2549 Mogami 2534 Product Title NYS231 Connection Type Plug Electrical Contact Resistance ≤ 10 mΩ Insulation Resistance ≥ 200 MΩ(Initial) Dielectric Strength 0.5 KVdc 50HZ Mechanical Lifetime > 5,000 Mating Cycles Insertion and Withdrawal Force 5 - 40 N Cable O.D. max 4.5 mm for standard outlet max 6.4 mm for large outlet ( * L） Material Plug finger Brass Sleeve Zinc Retainer ring PA66+30%GF Soldering Contact Phosphor Bronze Cable Clamp Steel Insulation PP Housing Zinc Plug finger plating Nickel Sleeve plating Nickel Soldering Contact plating Tin Cable Clamp plating Tin Housing plating Nickel
