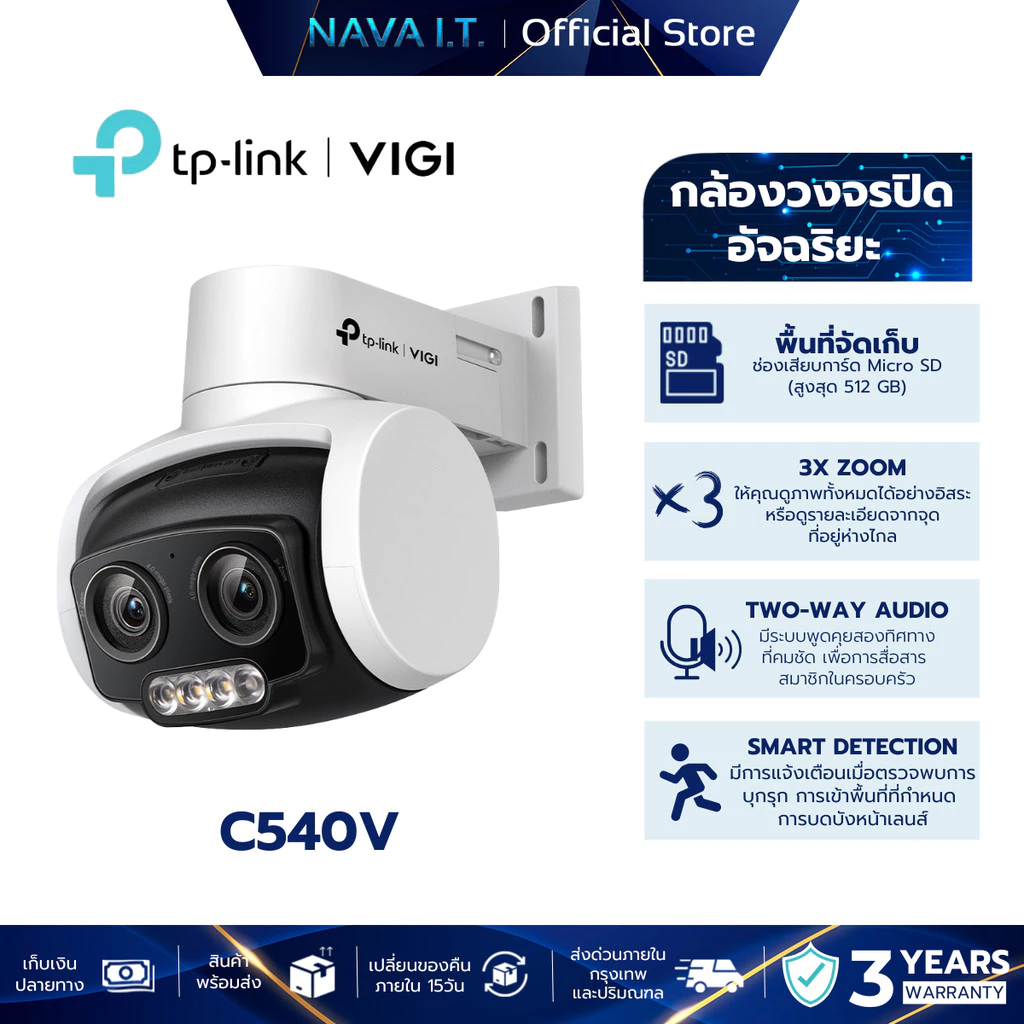

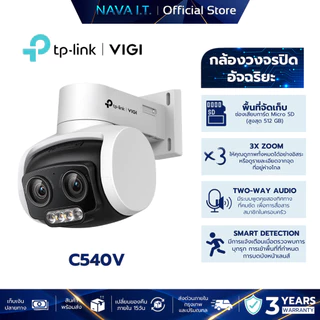

VIGI C540V 4MP FULLCOLOR NETWORK CAMERA 3X ZOOM กล้องวงจรปิดภายนอก

🔴 หมายเหตุการรับประกันสินค้า Micro SD ต้องเก็บPACKAGE ในการส่งเคลมทุกครั้ง หากไม่มีมี PACKAGE ทางร้านไม่รับเคลมทุกกรณีนะคะ CAMERA Image Sensor1/3” Progressive Scan CMOS Shutter Speed1/3 to 1/10000 s Slow ShutterYes Minimum Illumination0.005 Lux; 0 Lux with IR/white light Day/Night MechanismIR Cut Filter Day/Night SwitchDay/Night/Auto/Schedule-Switch Zoom3x Mixed Zoom LENS Focal Length4-12 mm (Mixed Zoom) ApertureF1.6 FOVDiagonal FOV: 100°, Horizontal FOV: 84°, Vertical FOV: 46° Lens MountM12*P 0.5 DORI Distance• 4 mm Detect: 80 m (262 ft) Observe: 33 m (109 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft) • 8 mm Detect: 150 m (493 ft) Observe: 63 m (205 ft) Recognize: 30 m (98 ft) Identify: 15 m (49 ft) PTZ Pan/tilt RangePan: 0° to 332°, Tilt: 0° to 120° Pan/tilt SpeedPan Speed: Configurable from 1° to 55°/s; Preset Speed: 55°/s Tilt Speed: Configurable from 1° to 40°/s, Preset Speed 40°/s Manual Control SpeedConfigurable from 8° to 35°/s Presets300 Patrol Scan8 patrols, up to 8 presets for each patrol Power-off MemoryYes; Auto restore to previous PTZ and lens status after power failure Park ActionYes; Preset; Patrol Scan 3D PositioningYes Angle Adjustment (Manual) RangePan: 0° to 332°, Tilt: 0° to 120° ILLUMINATOR IR LEDQuantity: 1 Range: 30m Wavelength: 850nm White LEDQuantity: 3 Range: 30m Illuminator On/Off ControlAuto/Scheduled/Always on/Always off VIDEO Max. Resolution2560 X 1440 Main StreamFrame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080,1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. Sub-StreamFrame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480, 352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. Bit Rate ControlCBR, VBR Video CompressionMain Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 H.264 TypeMain Profile/High Profile H.264+Main Stream Supported H.265 TypeMain Profile H.265+Main Stream Supported Video Bit RateMain Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps Image Image SettingsMirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software Image EnhancementBLC/3D DNR/HLC/SmartIR Wide Dynamic RangeDWDR SNR≥ 52 dB Image Parameters SwitchYes Privacy MaskUp to 4 Masks ROI1 Region OSD SettingYes AUDIO Audio CommunicationTwo-Way Audio Audio InputYes Audio OutputYes Audio CompressionYes Audio Sampling Rate8KHz Environment Noise FilteringYes Audio Bit Rate64 Kbps(G.711 alaw) NETWORK Protocol• TCP/IP • UDP • ICMP • HTTP • HTTPS • DHCP • DNS • RTSP • NTP • UPnP UDP • SSL/TLS • FTP/SFTP • RTP • IPv4 • IPv6 • ARP • SNMP • IEEE 802.1x ONVIFYes APIOpen Network Video Interface (Profile S) Simultaneous Live View3 Main Streams & 3 Sub-Streams ClientVIGI App, VIGI Security Manager, VIGI NVR, Web Web BrowserGoogle Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above CloudYes SecurityPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication ALARM AND EVENT MANAGEMENT Smart EventHuman & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection Basic EventMotion Detection, Video Tampering Detection, Exception ( Illegal Login) Alarm LinkageMemory Card Video Recording, Message Push, Audible Warning, White Light Flashing Linkage M
