EC11 โพเทนชิโอมิเตอร์แบบดิจิตอลแนวตั้ง audio digital potentiometer

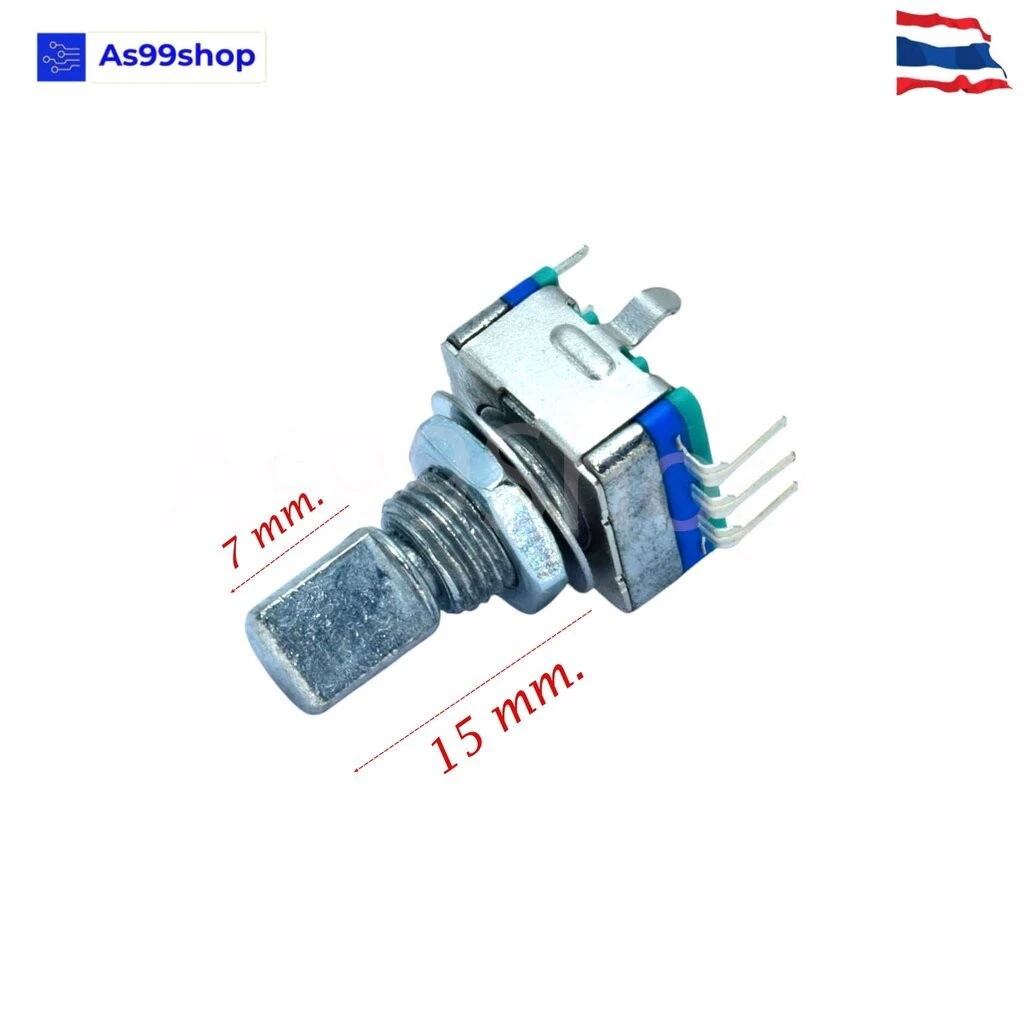

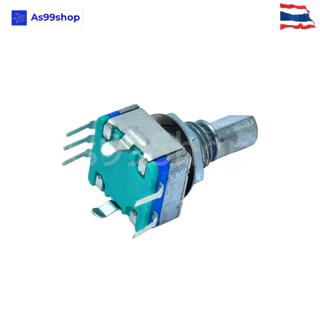

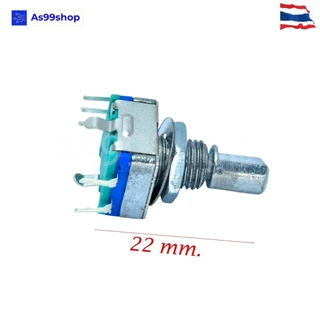

Rotary encoder coding switch/EC11/audio digital potentiometer Product introduction EC11I encoder is also called patch encoder, switch encoder, rotary encoder, car encoder, etc. EC11I encoder has 20 pulses and 20 positioning points, packaged as 250pcs/box, adjustment shaft half shank/threaded shank and other types, and the shaft length range is 20mm. No screws EC11I series encoders are mainly used in automotive electronics, multimedia audio, instrumentation, household appliances, smart home, computer peripherals, medical equipment and other fields. Please note that the encoder should not be stored in high temperature, humidity and corrosive places. After unpacking, the remaining products that have not been used should be stored in a moisture-proof and anti-virus environment. Product parameters Operating temperature range: -30℃ to+80℃ Storage temperature range: -40℃ to+85℃ Rated voltage::DC 5V Full rotation angle: 360 degrees (no stop point) Rotation life: 30000+200 Cycles Contact resistance: 100m Insulation resistance: above 100M Oscillation: 10mS Press Life: 20,000200 times. (0.5 stroke) 15,000200 times. (1.5 stroke)
