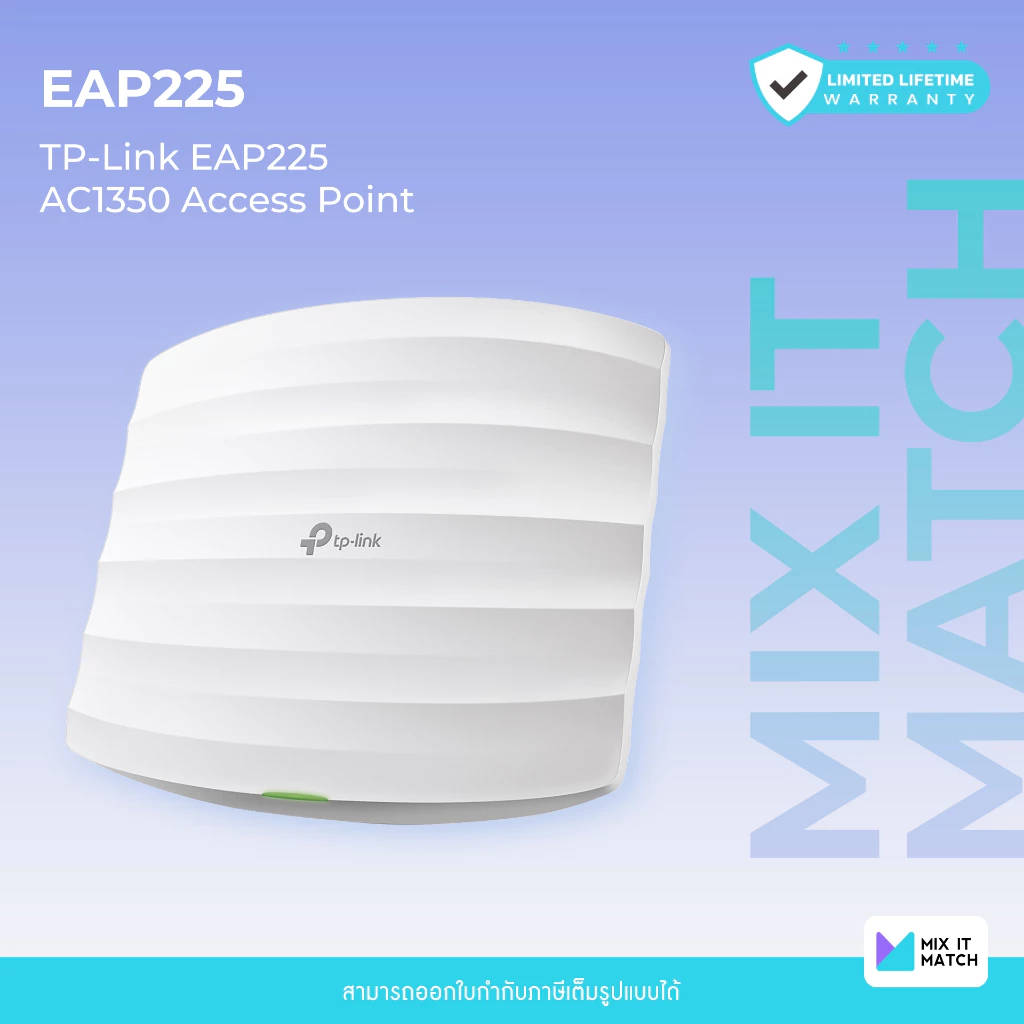

TP-Link EAP225 (EAP225) AC1350 Access Point

HARDWARE FEATURES Interface • Gigabit Ethernet (RJ-45) Port×1 (Support IEEE802.3af PoE and Passive PoE) Physical Security Lock • Yes Button • Reset Power Supply • 802.3af/at PoE • 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included) Power Consumption • EU: 10.5 W • US: 12.6 W Dimensions ( W x D x H ) • 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm) Antenna Type 3 Internal Omni • 2.4 GHz: 4 dBi • 5 GHz: 5 dBi Mounting • Ceiling /Wall Mounting (Kits included) WIRELESS FEATURES Wireless Standards • IEEE 802.11ac/n/g/b/a Frequency • 2.4 GHz and 5 GHz Signal Rate • 5 GHz:Up to 867 Mbps • 2.4 GHz:Up to 450 Mbps Wireless Functions • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Seamless Roaming • Band Steering • Load Balance • MU-MIMO • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client Wireless Security • Captive Portal Authentication • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support Transmission Power • CE: ≤20 dBm(2.4 GHz, EIRP) ≤23 dBm(5 GHz, EIRP) • FCC: ≤24 dBm(2.4 GHz) ≤22 dBm(5 GHz) MANAGEMENT Omada App • Yes Centralized Management • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller Cloud Access • Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) Email Alerts • Yes LED ON/OFF Control • Yes Management MAC Access Control • Yes SNMP • v1,v2c System Logging Local/Remote Syslog • Local/Remote Syslog SSH • Yes Web-based Management • HTTP/HTTPS L3 Management • Yes Multi-site Management • Yes Management VLAN • Yes OTHERS Certification • CE, FCC, RoHS Package Contents • AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225 • Passive PoE Adapter • Power Cord • Mounting Kits • Installation Guide System Requirements • Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux Environment • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
